Detail produk:
|
| Model nomor.: | MB202F | Poros Pemotong: | 8 |
|---|---|---|---|
| Kecepatan poros: | ＜5000rpm | Jenis Proses: | Pemrosesan Ringan |
| Tegangan: | 380V | Daya (w): | 2200w |
| Berat: | 375kg | Max. Maks. Planning Width Lebar Rencana: | 200mm |
| Ketebalan Planing: | 3-160mm | Paket Transportasi: | Kayu lapis |
| Spesifikasi: | CE | Merek dagang: | merek pelanggan |
| Asal: | Shanghai Cina. | Kode HS: | 84651000 |
| Menyediakan kemampuan: | 100 set/Per Bulan | Jenis: | Planer Tekanan Dua Sisi |
| Kedalaman Kerja: | ＜100mm | Lebar Kerja: | 200-400mm |
| Rantai penggerak: | Drivetrain Pengangkat Meja Kerja | Masukkan Metode: | Mendorong |
| Tenaga motor: | ＜5Kw | ||
| Menyoroti: | Mesin Planer Kayu 2200W,Mesin Woodworking Planer 2200W,Mesin Planer Kayu Dua Sisi |
||

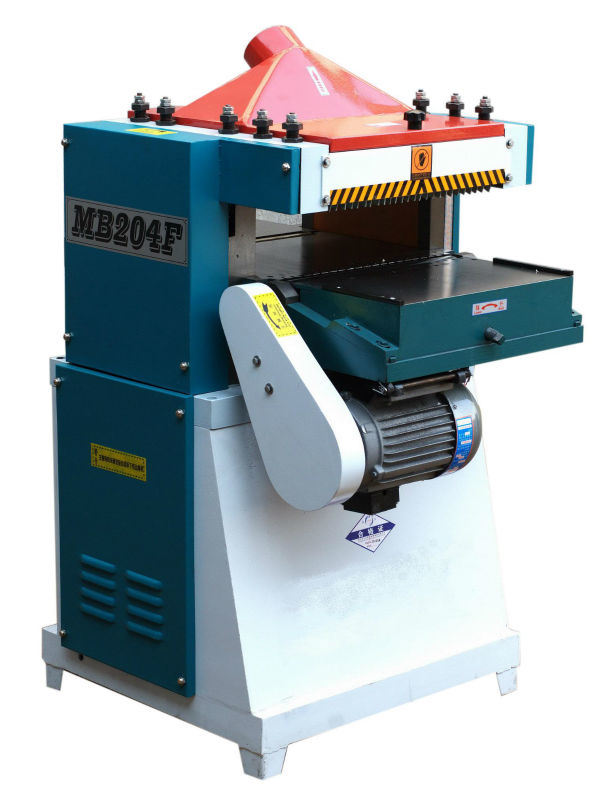

Model | MB202F | MB203F | MB204F | MB206F | MB208F |
Maks.Lebar Rencana | 200mm | 300mm | 400mm | 610mm | 810mm |
Ketebalan Planing | 3-160mm | 3-160mm | 3-160mm | 12-200mm | 15-200mm |
Min.Panjang Planing | ≥ 165mm | ≥ 165mm | ≥ 165mm | ≥ 260mm | ≥ 260mm |
Maks Atas.Kedalaman Perencanaan | ≤ 4mm | ≤ 4mm | ≤ 4mm | ≤ 4mm | ≤ 4mm |
Maks bawah.Kedalaman Perencanaan | ≤ 2mm | ≤ 2mm | ≤ 2mm | ≤ 4mm | ≤ 4mm |
Kecepatan Makan Otomatis | 8, 10 m/mnt | 8, 10 m/mnt | 8, 10 m/mnt | 8, 12 m/mnt | 8, 12 m/mnt |
Spindle Cutting Dia. | Φ 75mm | Φ 75mm | Φ 75mm | Φ 105mm | Φ 105mm |
Kecepatan poros | 7000-7500r/ min | 7000-7500r/ min | 7000-7500r/ min | 5700r/ mnt | 5700r/ mnt |
Motor Spindel Atas | 2.2kw * 380v | 3kw * 380v | 4kw * 380v | 4kw * 380v | 5.5kw * 380v |
Motor Spindel Bawah | 1.5kw * 380v | 2.2kw * 380v | 2.2kw * 380v | 5.5kw * 380v | 7.5kw * 380v |
Dimensi Keseluruhan | 890 * 495 * 1180mm | 890 * 595 * 1180mm | 890 * 695 * 1180 mm | 1200*960* 1360 mm | 1200*1160* 1360mm |
Berat bersih | 295kg | 320kg | 375kg | Menghitung^ | |
Kontak Person: Mrs. Grace Li
Tel: 13853295953
